Description

Every so often a design team comes along and approaches an established formula from a whole new angle. Vello rewrote the rules on ultra lightweight folding bikes, with their compact titanium model weighing in at under 7kg, complete with 20” wheels for speed and comfort

The Sub Series incorporates the same ethos: structural integrity paired with smart materials and folding components, so it is as easy to ride as it is to park indoors on a regular landing found in most cities

Compare the Vello Sub at 24.9 kg with a 60+kg ‘box bike’ offering the same number of seats and the advances become clear, even before adding a pair of Kiddos, a picnic or a couple of bags of groceries

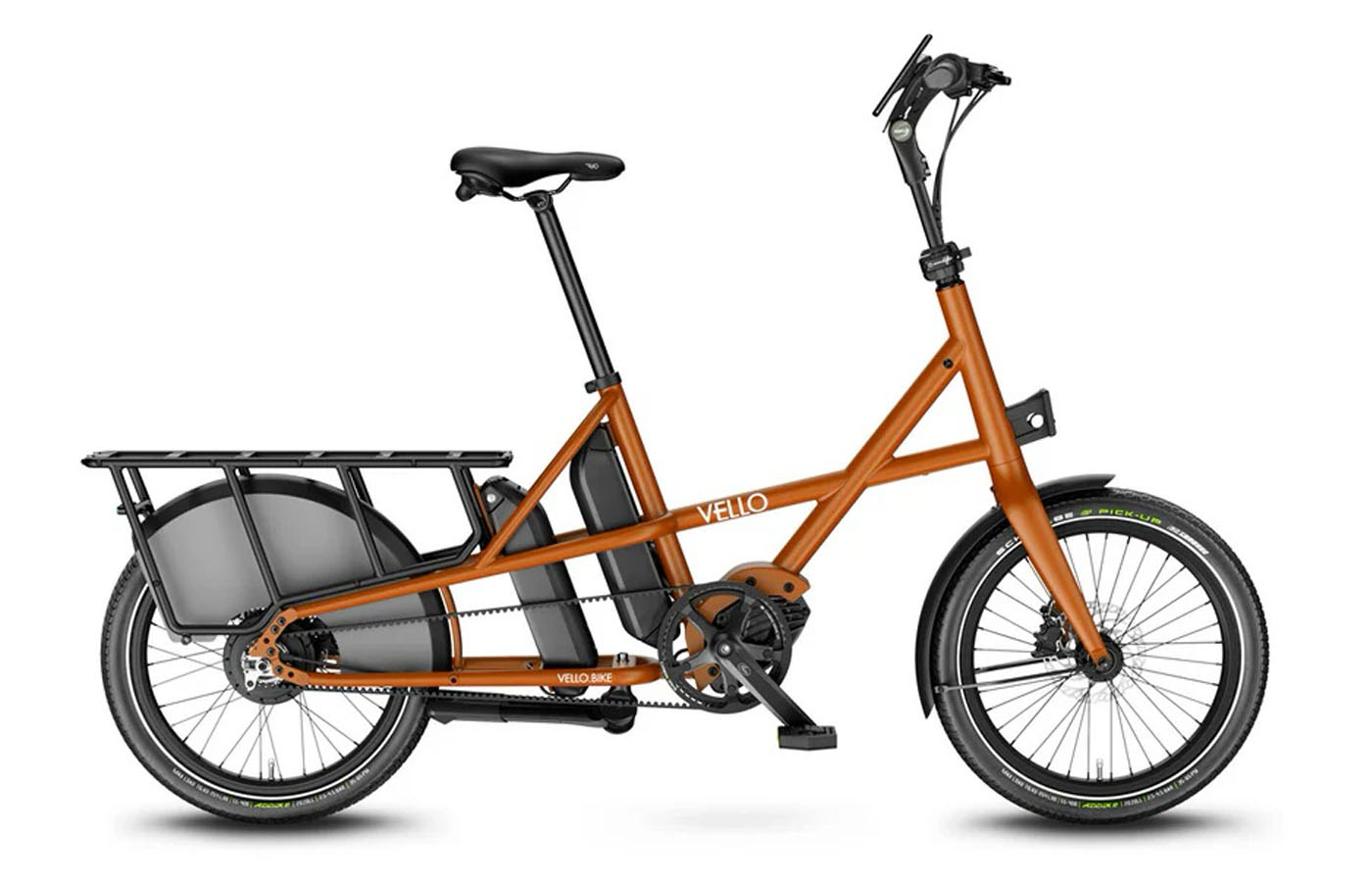

So what are the options? Two geared models in copper or blue, plus a geared/single speed version in titanium.

The gears are integrated into the rear hub so they’re efficient and the drivetrain uses a belt drive, so it’s both clean and effectively maintenance free

All Vello Sub models are electric and include a powerful Bosch motor and a 400Wh battery (which you can upgrade to 545Wh, or include a second battery to go up to 250km between charges)

Specifications:

Frame: unisex, titanium, integrated cable routing

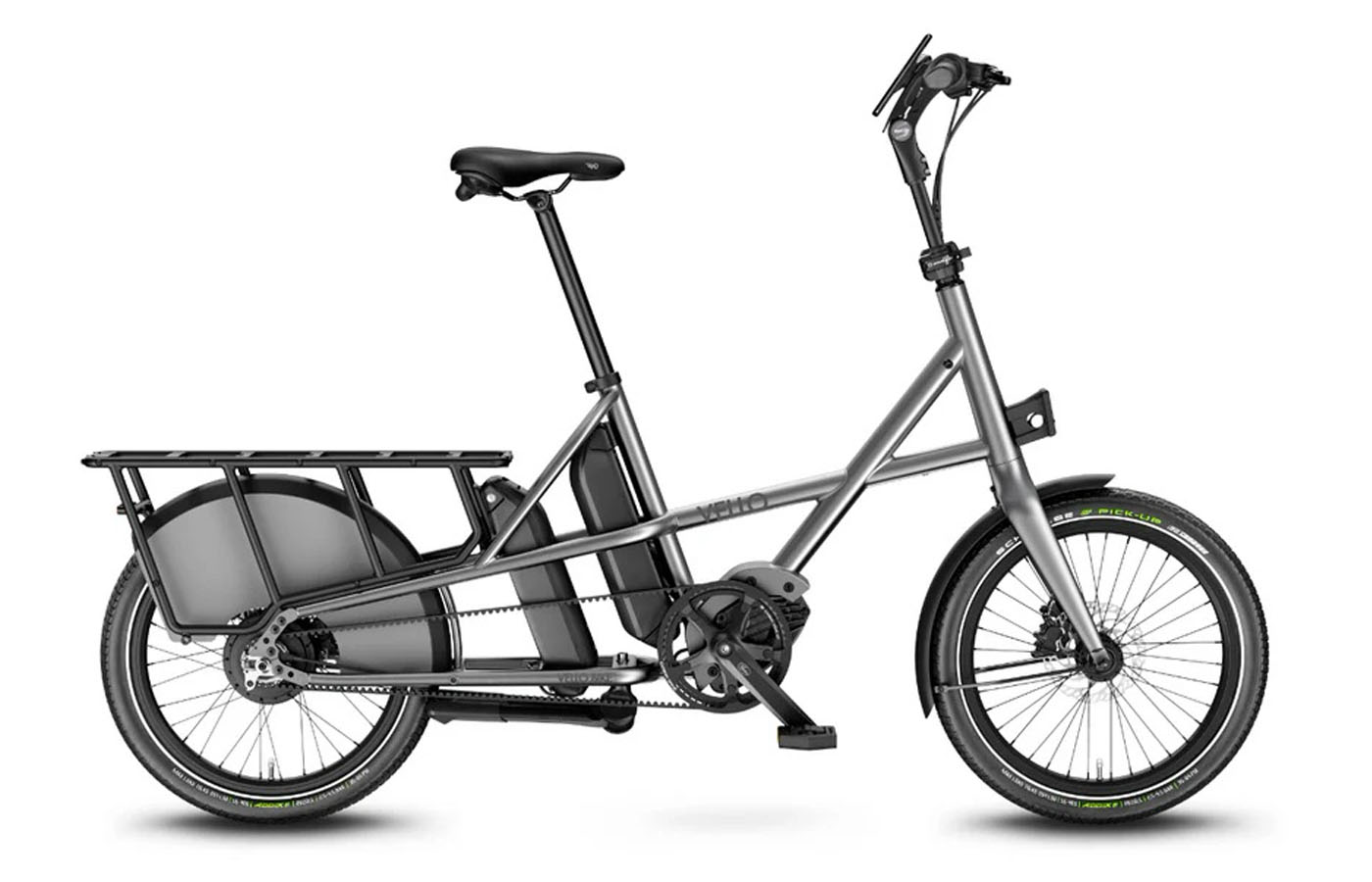

Colour: brushed titanium
Size: one size (fits riders 150 cm to 200 cm)

Handlebar: VELLO handlebar (640 mm)
Grips: ergonomic grips
Fork: VELLO SUB /Material: aluminium/ 20” /IS-intake/ Thru axle /for tires until 60-406 (20x 2,35) /Integrated cable routing
Saddle: gel saddle with carrying handle
Seatpost: VELLO/Ø31.6/400 mm
Telescopic stem: height adjustable and rotatable to 90degrees, without tools (by.schulz/Speedlifter Twist/T15)
Stem: adjustable without tools, Satori/EZ3 with SP Connect mount (fits riders from 150 cm to 200 cm)

Belt drive: Gates Carbon Drive/CDX/168T
Front belt ring: belt, Gates Carbon Drive/CDX/ 60T
Rear belt sprocket: belt, Gates Carbon Drive/CDX/ 22T (with gears) or 19T (Single Speed)

Brake system front/rear: Magura®/MT5/ Four-piston-disc brakes
Brake disc front/rear: Magura®/MDR-C/160mm/6-hole mount
Front hub: VELLO/36-holes/12×100/Thru axle
Rear hub: Enviolo/Heavy Duty/36-holes/148 mm (with gears) or freewheel (for Single Speed)
Gearshift (with gears): Enviolo/TR
Tyres: Wide 20’’ Schwalbe Big Apple 20×2.15 (55-406) for extra stability and comfort

Motor: Bosch®/Performance Line CX (Cargo Line)/GEN4/85 Nm/Smart System (GPS-tracking-ready)
Charging time: 4.5 Hours(full charge)
Battery: Bosch®/1x 400 Wh or 545Wh(optional with upgrade) PowerPack battery/Dual Battery Ready
Battery charger: Bosch®/4A (230 V)
Range: up to 250 km (dual battery)

Pedals: VELLO full-aluminium folding pedals
Front lights: Supernova/Mini 2-LDM (StVZO-approval)
Rear lights: Supernova/TL3 Pro with brake light function for more safety
Bell: VELLO
Stand: VELLO
Front mudguard: VELLO
Rear mudguard: VELLO

Rear rack (not detachable from the frame): Load carrier with payload 100kg/Aluminium/with integrated MIK-HD System/Footboard-ready
MIK-HD integration: compatible with all MIK und MIK-HD accessories, amongst other tool-free mounting of up to 2 children seats
Front carrier adapter system: enables tool-free mounting of various front carriers and bags (carrier block included)
Meters of development: 2.25m – 8,55m (with gears)
Permissible total weight: 210 kg
Weight of SUB (approx., without pedals, +/- 5%) with 400Wh battery: 24,9 kg (Single Speed), 26,9 kg (with gears)
Dimensions folded: H:85 cm x L:180 cm x W:29 cm

Warranty: 5 years on frame and fork, 2 years on motor, battery
Scope of delivery includes a standard charger (type F, SchuKo, EU), reflectors, mobile phone mount, front carrier block, chain guard, spoke protector, mudguards, lights, bipod stand, Bosch® App and Bosch® remote control, rear carrier (cannot be separated from the frame).

Optional: Upgrade to 545Wh battery from Bosch®
